Islamic_002

I am programming this in Procesing see my current code on Github

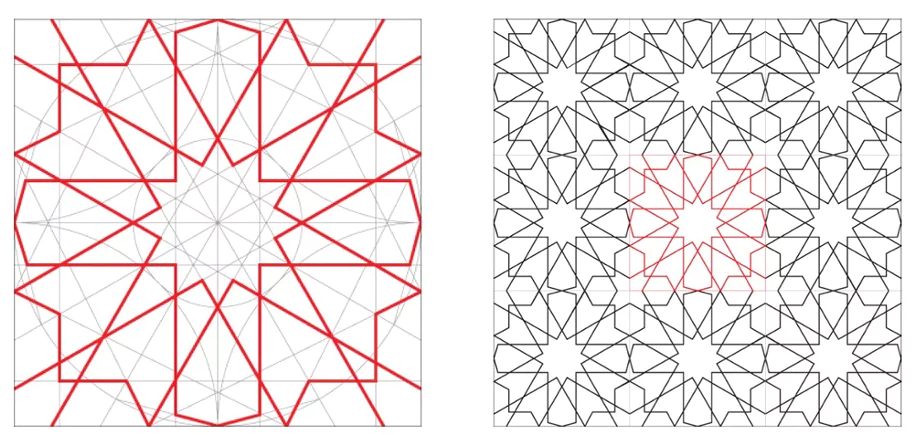

See the article in the Gardian which is inspiring me to draw this.

I have placed the code for this online at https://github.com/rupertrussell/Islamic_002

https://www.theguardian.com/science/alexs-adventures-in-numberland/2015/feb/10/muslim-rule-and-compass-the-magic-of-islamic-geometric-design

When I first started to program this I thought I need to be able to locate the x,y point of a projected line.

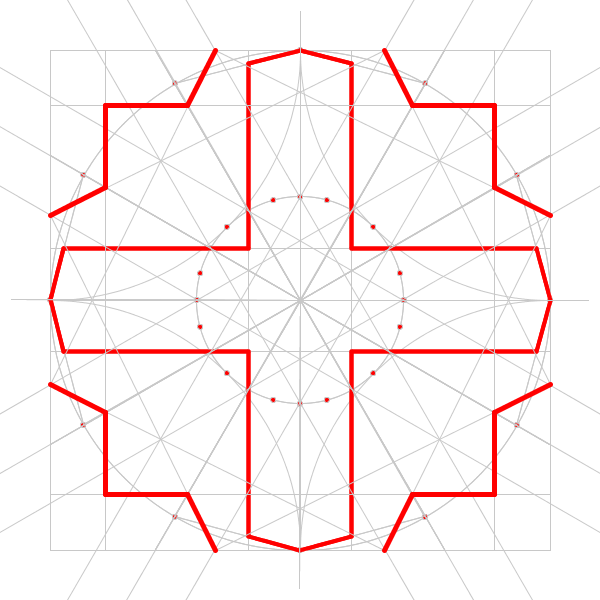

I am making progress I have finished drawing the centeral cross.

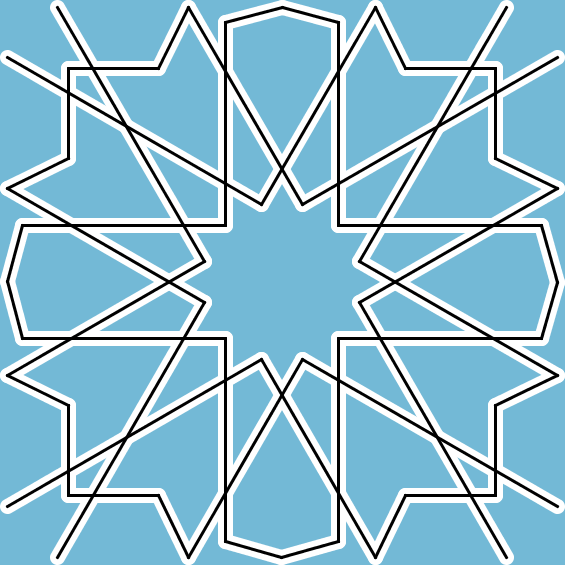

Finished it !

As it turnend out I decided to locate the intercetion points by hand which has workd out OK.

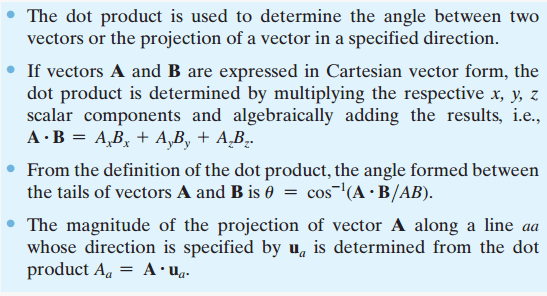

It turns out that I did not need to use The dot product metod to project the guidelines

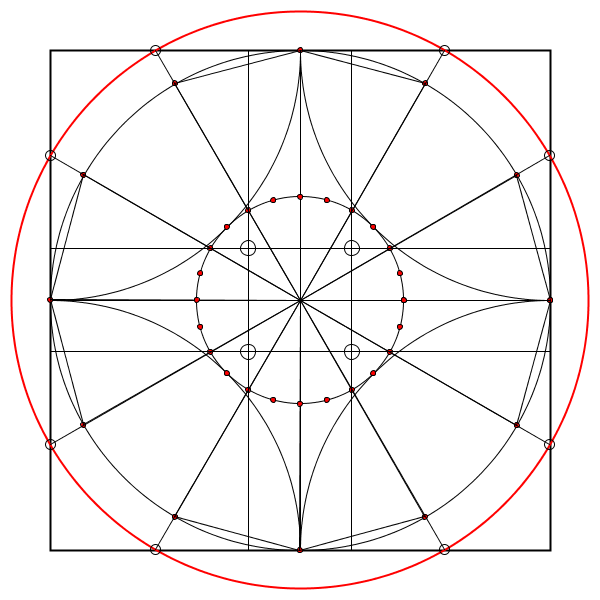

I just used a larger outer circle that intersects with the boundary square and I then calculated

the 8 points on the circle where it intersects with the boundary

http://www.sunshine2k.de/coding/java/PointOnLine/PointOnLine.html#step5

5. What are the coordinates of the projected point on a line segment using the perp dot product ?

https://youtu.be/xSu-0xcRBo8

Vector Projections - Example 1
