Fractint Notes

These notes details the seps I use to generate large fractal images using Fractint. Local copy of Fractint 20.04p12.zip

Local copy of Ultimate Boot CD V5.2.9 or see: http://www.ultimatebootcd.com/download.html

Current release: V5.2.9

Download format Size Checksums

ISO image

574MB [MD5    ] e1b19eeede70be45c10dd8e14b78d405
[SHA1   ] 3386cd7be69853cf304375ed2a5a826eb26f32e8
[SHA-256] eacdbe9321d5f87824ceffa801cc09f05e2c25e305bac9be7a10591578efb32c

0) Insert USB with Fractint into PC
1) Boot PC with Ultimate Boot CD V52.9
2) Select UBC FreeDOS R.1.51 (Based on MwDisk v3.30)
3) Select 2 UMBPCI (optimal)
4) Load all default drivers
5) Press Escape to exit from Menu
7) Change to Drive C:
8) Run Fractint





1) Generate a fractal in Fractint and save it

3) selext x for the basic commands menu and enter a file name eg BB_00

4) Press B for Batch mode

5) Select the number of X & Y parts eg 10 x 10

Press Enter to save the batch file



Note you will need a copy of a program called Simplgif to convert the muti part gif fractmig.gif onto a standard gif file

There is a line that is commented out at the bottom of the batch file that will create the silmpe.gif version just edit the batch file
and remove the REM statment



http://www.filewatcher.com/m/simplgif.exe.77572-0.html





If you don't use simplgif.exe then the following steps will work using a program called Fiji.

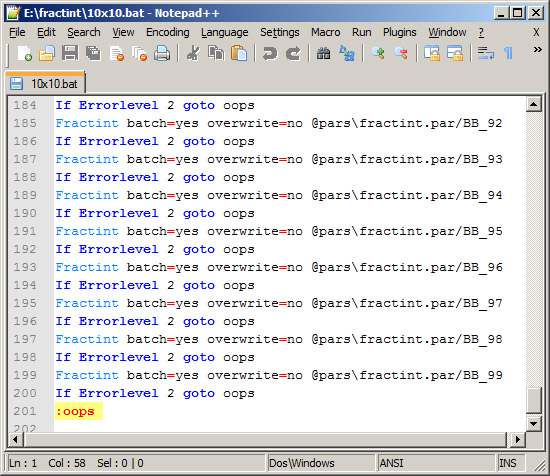

6) Edit the batch file to change overwrite=yes to overwrite=no and remove the makeimage command at the bottom of the batch file because I found that this is not working properly for some reason.

7) Run the Batch file to generate the required "tiles"



8) use Fiji to stitch the images together download online - local copy of Fiji 32 Bit & Fiji 64 Bit

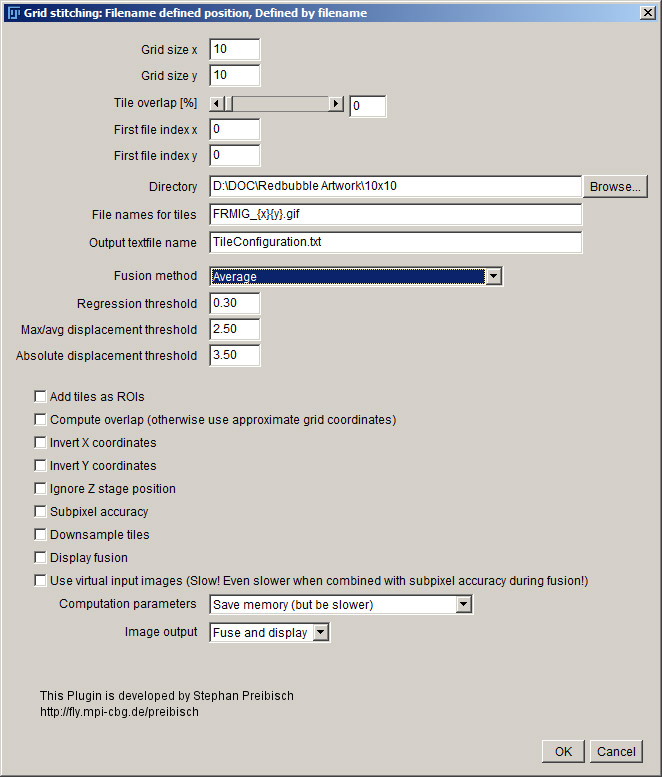

9) Run the Plugin

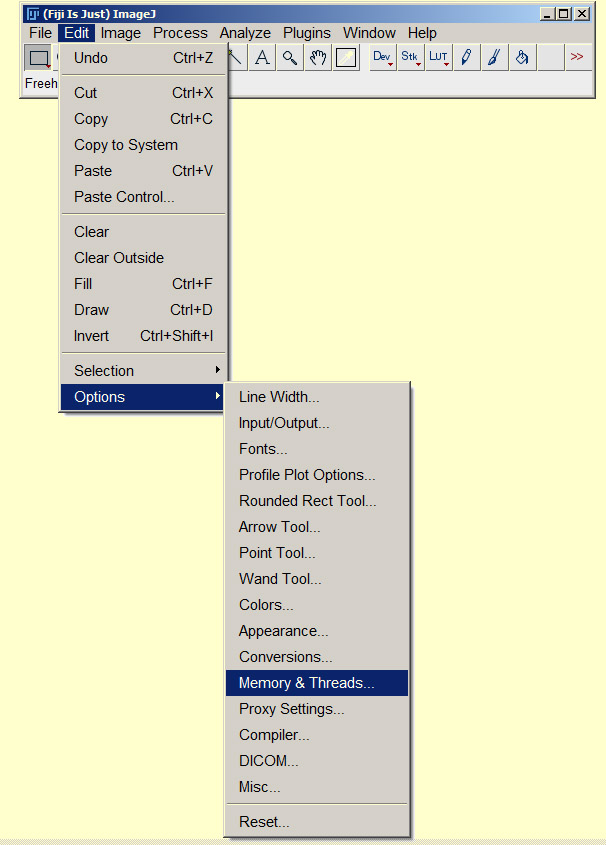

Note you will need to run this on a 64 Bit machine running 64 Bit Java and increase the Memory Allocation



9) Save the Stiched Image



http://fiji.sc/Fiji



http://fiji.sc/wiki/index.php/Image_Stitching



http://fiji.sc/Stitch_and_Align_a_sequence_of_grid_images_Tutorial

Regular Expression File Renamer Local Copy

http://www.bulkrenameutility.co.uk/Download.php
