Minimum Flash



hookup









#include "Adafruit_FloraPixel.h"

/*****************************************************************************
Example sketch for driving Adafruit Flora pixels

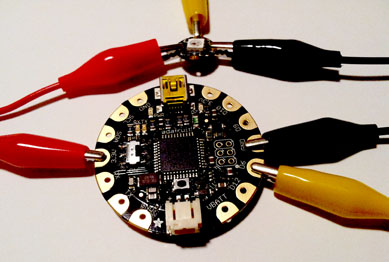

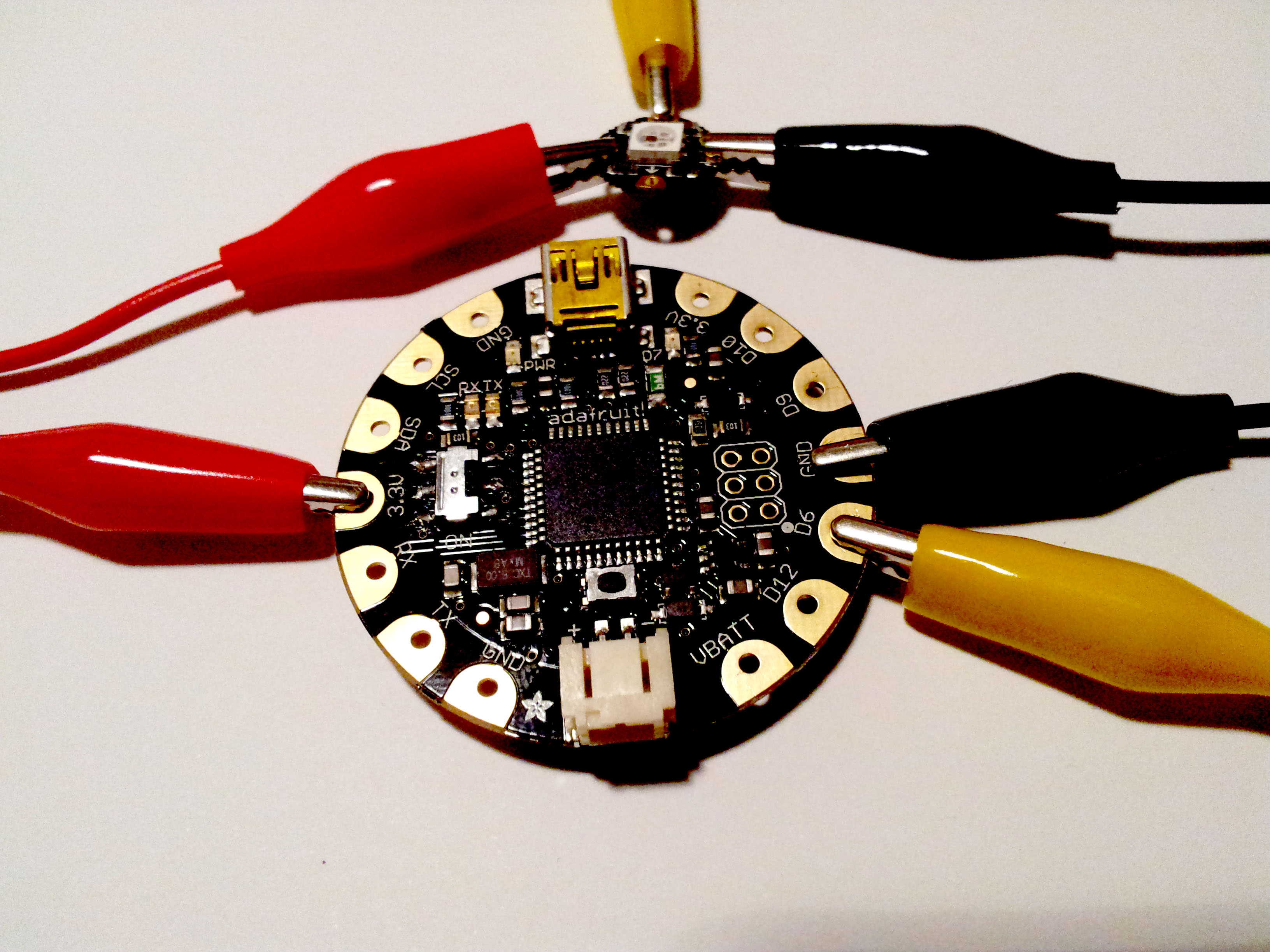

Connect a single pixel to the Flora
Connect the Data in which is a small inwards poinnting arrow on the pixel to D6 on the Flora
Connect - on the Pixel to GND (Ground) on the Flora
Connect + on the Pixel to 3.3v on the Flora
*****************************************************************************/

Adafruit_FloraPixel strip = Adafruit_FloraPixel(1);

void setup() {
   strip.begin(); // Update the strip, this will turn off the pixel.
   strip.show();
}

void loop() {

   strip.setPixelColor(0,127,0,0); // set pixel 0 to green half brightness
   strip.show();

delay(1000);

   strip.setPixelColor(0,255,0,0); // set pixel 0 to green full brightness
   strip.show();
   delay(1000);

   strip.setPixelColor(0,127,0,0); // set pixel 0 to green half brightness
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,50,0); // set pixel 0 to a dull red
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,255,0); // set pixel 0 to red full brightness
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,50,0); // set pixel 0 to a dull red
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,0,50); // set pixel 0 to blue
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,0,255); // set pixel 0 to blue full brightness
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,0,50); // set pixel 0 to blue
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,50,50); // set pixel 0 to dull magenta
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,255,255); // set pixel 0 to magenta full brightness
   strip.show();
   delay(1000);

   strip.setPixelColor(0,0,50,50); // set pixel 0 to dull magenta
   strip.show();
   delay(1000);

   strip.setPixelColor(0,50,50,0); // set pixel 0 to dull yellow
   strip.show();
   delay(1000);

   strip.setPixelColor(0,50,50,50); // set pixel 0 to dull white
   strip.show();
   delay(1000);

}
